Starting a kmp project - The one with build info - Episode 3

In Android apps, we need the build info mainly for 3 purposes;

To better help customers (if there is a customer support, then customers can see which app version they use, or even which platform version they use since not all users know how to see those information and it is usually different/changing where to see this information between platforms).
To ship the app builds with secrets and environments like staging or acceptance looking APIs to do the testing without affecting prod systems. Shopify’s and DesignRush’s blogs are nice to read to understand why we need different environments.
To control what the app does (e.g. Enriched Logging in debug builds, enabling option to use mock data in debug builds, disabling the testCoverage task in debug build for performance, disabling leakCanary in test automation, enabling Analytics in prod builds, etc…).

Therefore build info;

Should be able to provide different configuration for each build type (app version, name, secrets like API keys can be different per each build type).
Should be reachable at runtime.
Should be injectable in CI (If not all, then at least some info like build secrets, or values for an automated versioning system).

With this in mind, this article explores implementing the following model:

interface Platform {
    val appVersionCode: Int
    val appVersionName: String
    val platformVersionName: String // Android version | iOS version | JVM version | Web vendor etc...
    val buildType: BuildType
    val isDebuggable: Boolean
}

enum class BuildType {
    DEBUG,
    STAGING,
    RELEASE,
}

Android side:

The Android Gradle plugin simplifies many of these aspects. Talking from a simple example will make it easier to explain.

val properties = gradleLocalProperties(rootDir, providers)
val stagingAPIKey: String = properties["api.key.staging"]
val prodAPIKey: String = properties["api.key.prod"]

buildTypes {
    debug {
        isDebuggable = true
        ...
    }
    release {
        isDebuggable = false
        ...
    }
}
productFlavors {
    create("staging") {
        applicationIdSuffix = ".staging"
        versionNameSuffix = "-STAGING"

        buildConfigField("String", "API_KEY", stagingAPIKey)
    }
    create("prod") {
        buildConfigField("String", "API_KEY", prodAPIKey)
    }
}

To be able to provide different configuration for each build type or flavor, android plugin has buildTypes and productFlavors feature where you can provide the different configuration for the same variables. So whether we are in staging or prod flavor, we can access the related API_KEY instance.
buildConfigField enables us to access the values in runtime via generated BuildConfig file, and then we can read our API_KEY in runtime like BuildConfig.API_KEY.
For getting secrets or control flags in gradle, we can first store them in local.properties or any properties file that you know for sure will NOT end up in your version control system (Git), and then we can read those properties to provide them in runtime with buildConfigField in gradle as mentioned earlier.

iOS side:

I’m less familiar with the iOS side, but I found a a nice article in medium for iOS configuration. They’ve a similar implementation. It’s not called .properties file but .xcconfig to store properties which supports different build types. It’s not called build type but configuration and etc… Then, it is a matter of accessing the build info in runtime with Bundle.main.infoDictionary?["API_KEY"]. But even though those platforms have similar implementation, because we use gradle in the KMP project, I couldn’t find a way to implement build types and flavors in a way that Android can with the gradle plugin.

Desktop side:

Another article mentions that we can use System Properties to define the local properties to pass them to the application so the build info can be accessed in runtime later. But again no first-class gradle support like Android has.

Wasm Web side:

In web projects, the story is a bit different since the concept of “build type” or “product flavor” works differently than Android/iOS. We’re not distributing an app binary to users; instead, we’re pushing updates to a server. But versioning is still essential for caching, tracking changes, debugging, and CI/CD workflows.

I then decided to check other web frameworks to see how they handle these;

Next.js web apps are making use of Environment variables so that depending on flavor (environment), Next.js can load the properties from files like .env.production, .env.development etc…
Spring web apps are making use of Profiles feature and application.properties to set app properties like the name of the app;

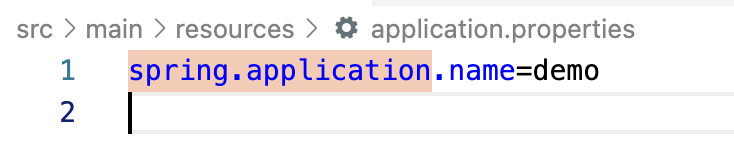

application.properties file

Looks like again no first-class gradle support like Android has.

First design decision - Provide platform implementation for each platform separately

Changes are in this PR.

Considering that only Android has first-class gradle plugin support for build types and flavors, I’ve first decided that each platform would have it’s own implementation. Although using actual/expect on koin modules doesn’t guarantee the module cohesion as stated in the Koin Android Makers talk, it made things easier for me, like providing Android context in AndroidPlatform so that I can check if app is debuggable. That meant, even though there are different sources for each platform, there is still a single source of truth within each specific platform (For instance I should be able to trust Android’s BuildConfig and iOS’s NSBundle).

On Android side, I can fully provide Platform model with the first-class support.

App Version Code	App Version Name	Platform Version Name	Build type	Is debuggable
BuildConfig	BuildConfig	Build.VERSION	BuildConfig	ApplicationInfo

Little remark for Android

For the first design decision, I’ve chosen staging buildType because there is no acceptance or staging environments for the APIs that I’m gonna use, and I’d like to use it to see how dress rehearsal goes via Firebase Distribution just before shipping the apps to their own stores. I wanted to keep the assembly process simple (I can ship the android app with assembleStaging and assembleRelease). Currently my staging buildType is almost similar to release buildType (it is initWith(getByName("release"))), except package, app name, version and signing config is different. And I treated release build type as prod build where it is minified and obfuscated with prod signing config.

But if you are working on a serious app, you might want to also enrich it with Flavor. For instance if you’d like to debug the prod app, you can create prod, staging flavors. Then you have an access to prodRelease, prodDebug, stagingRelease, stagingDebug builds which gives you more options to do more.

On iOS side, I can use NSBundle to access configuration and scheme info. I can also use NativePlatform to see if it’s a debug binary.

In summary, except Build Type, I was able to provide Platform model with a first-class support.

App Version Code	App Version Name	Platform Version Name	Build type	Is debuggable
NSBundle	NSBundle	UIDevice	❌	NativePlatform

For web, AI suggested I could use hostname of browser.window to decide if app is in debug mode, or for platform version name userAgent of window object, but there is no way to get appVersionCode and appVersionName from a platform specific object like those Android and iOS provide (BuildConfig/NSBundle).

But again there is no first-class gradle support here.

App Version Code	App Version Name	Platform Version Name	Build type	Is debuggable
❌	❌	kotlinx.browser.window	❌	kotlinx.browser.window

For desktop, the isDebugBuild logic AI suggested didn’t work for me. Maybe I’m doing something wrong here but again like web, there is no natural way to get appVersionCode and appVersionName.

App Version Code	App Version Name	Platform Version Name	Build type	Is debuggable
❌	❌	System	❌	❌

Back to the build info topic

And here the problem starts, how to get this build info in runtime for each platform for each build types (configurations as iOS calls it).

Looking at these suggested KMP samples by Jetbrains, I couldn’t find any example that make use of Build Type.

Though I could find 2 build config plugins that kinda works with flavors (but not build types);

Suggested KMP samples that uses buildconfig plugin;
- https://github.com/fethij/Rijksmuseum/blob/main/core/network/build.gradle.kts
Suggested KMP samples that uses BuildKonfig;

Both generate BuildConfig for all platforms. But it’s still not like the buildType feature of Android Gradle plugin, where you have access to all build types by default.

Overall, I could fulfill the Platform interface fully only in Android and iOS platforms. In web and desktop platforms, I would have needed app config files per build type (environment, configuration) and different run configurations to use related app config, which meant losing the single source of truth.

Second design decision - Provide platform implementation from app properties via buildkonfig plugin

Changes are in this PR.

The disadvantages of the first design decision and design twice advice from John Ousterhout in the book of Philosophy of Software Design, led me to think of a second design which is using only app config files (application.properties) as a source of truth (I think it’s a known concept on all platforms, like .env.production on the web, application.properties in Spring Boot, or .xcconfig files on iOS etc…). Therefore, decided to create a fake build type called effectiveBuildType (in order not to confuse it with Android Gradle plugin’s build type field) where I would use it to access the right app properties for each platform and provide them at runtime via the buildkonfig plugin.

To determine the effectiveBuildType was a bit a challenge. Somehow, providing it via gradle project properties like so ./gradlew :composeApp:embedAndSignAppleFrameworkForXcode -PeffectiveBuildType=debug didn’t work for me.

Therefore, I decided to run a Gradle task (updateEffectiveBuildType) with BeforeRunTask feature where it would update the effectiveBuildType in a local.properties file based on the run configuration before running the run configuration for the selected platform. That meant, I had to create run configuration for all platforms and for all build types. But once created, I could run these configurations, which would first update effectiveBuildType in local.properties. Then, when running the app, it would read effectiveBuildType to provide the correct app properties for the Platform data class.

The disadvantage of this was that I had to create a lot of run configurations even for android and now I couldn’t depend on Android Studio IDE’s Build Variant selection, which, as an Android developer, I was very used to.

Third design decision - Provide platform implementation from detected Android build type or system environment

Changes are in this PR.

Since I was used to Android Studio IDE’s Build Variant selection a lot, it was a shame not being able to use it anymore. This article made me think it might still be possible to use Build variant selection. This led me to improve on top of the 2nd design solution where providing the effectiveBuildType from gradle’s startParameter for Android (so that I could use the Build variant selection), or from iOS or from System rather than providing the effectiveBuildType via the updateEffectiveBuildType BeforeRunTask. In the article itself, somehow it’s only using getAndroidBuildVariantOrNull and System.getenv() but for me, I wasn’t able to provide the effectiveBuildType from Build settings as a system environment. So I had to use iOS’s Configuration like System.getenv("CONFIGURATION"). You could also say that I could provide the effectiveBuildType on iOS as a system environment by exporting it in the Build phase, but that also didn’t work for me. Feel free to make suggestions that could work. This was the version I tried;

...
export EFFECTIVE_BUILD_TYPE=\"$EFFECTIVE_BUILD_TYPE\"

cd "$SRCROOT/.."

./gradlew :composeApp:embedAndSignAppleFrameworkForXcode

Overall it took a lot of effort and many unsuccessful attempts since my knowledge of iOS/Web/Desktop wasn’t extensive. And the 3rd design decision is still not good as I still can’t count on IDE’s Build Variant selection on iOS/Web/Desktop platforms. But since I’ll mainly work on Android emulators when designing and sometimes check how it looks on other platforms, it was okay to start with. I’m also surprised that many suggested KMP apps don’t even have a build type or environment setup. I’ll update this if I can come up with a better solution in the future.

I’m also listing the articles and documents I took into account in the case that it helps you to make a better decision.

References;

Imo this was one essential topic to get started with KMP and hope to get feedbacks to make this KMP journey better 🎉 And an update on the Checklist;

Core
- ✅ Dependency management: Renovate
- ✅ Lint
- ✅ Static code analysis: Detekt
- ✅ Build info
- Logging
  - Error reporting
  - Analytics
  - Tracing
- Network
- Benchmarking
- Build conventions
- Flavors
- Mocks
- Test fixtures
- Preferences
- Storage
- DI
- Feature flags (local & remote)
- Deep linking
- Push notifications
- TimeProvider
- Local Formatters
- Coroutine Dispatchers & Test helper
- Unit testing
- Test coverage
- Obfuscation & Shrinking
- Pipelines
- Releasing
- Force updates
UI
- Design system
- Gallery App
- Navigation
- Baseline profiles
- Compose compiler metrics
- Previews
- Network image loading
- supportsDynamicTheming
- Status bar color changing
- App settings with Resource Environment
  - l10n
  - i18n
- Testing
  - UI Testing
  - Compose Screenshot testing

Hope to see you in the next episode.

Until then may the force be with you… 🖖
